532nm拉曼激光器~1000mW

NBET-F-532/500~1000mW

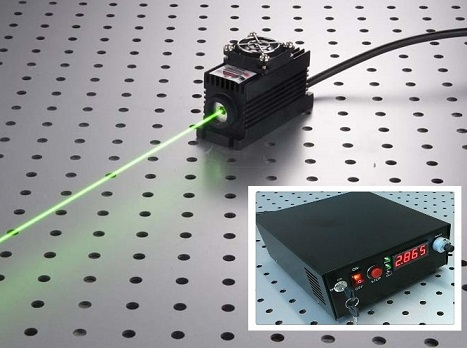

SINGLE LONGITUDINAL MODE，GREEN LASER AT 532 nm

All solid state single longitudinal mode，green laser at 532 nm is made features of

ultra compact, long lifetime, low cost and，easy operating, which is used in DNA

sequencing, flow cytometry, cell sorting,，optical instrument, spectrum analysis,

interference, measurement, holography,，physics experiment, etc.

技術參數

Wavelength (nm) 532±1

Operating mode CW

Output power (mW) >500, 600, … , 1000

Power stability (rms, over 4 hours) <1%, <3%, <5%

Transverse mode TEM00

Longitudinal mode Single

Spectral linewidth (nm) <0.00001

Coherent length (m) >50

Noise of amplitude (rms, 1Hz~20MHz) <1%, typical<0.5%

M2 factor <1.5

Beam diameter at the aperture (1/e2, mm) <2.5

Beam divergence, full angle (mrad) <1.2

Polarization ratio >100:1, Vertical±5 degree (Horizontal Optional)

Warm-up time (minutes) <10

Pointing stability after warm-up (mrad) <0.05

Beam height from base plate (mm) 45

Operating temperature (℃) 15~35

Power supply (90-264VAC) PSU-H-FDA

Expected lifetime (hours) 10000

Warranty 1 year
