光強計

(Click Photo to Enlarg

/

描述

緊湊型功率計表頭，機械指針和圖形液晶顯示

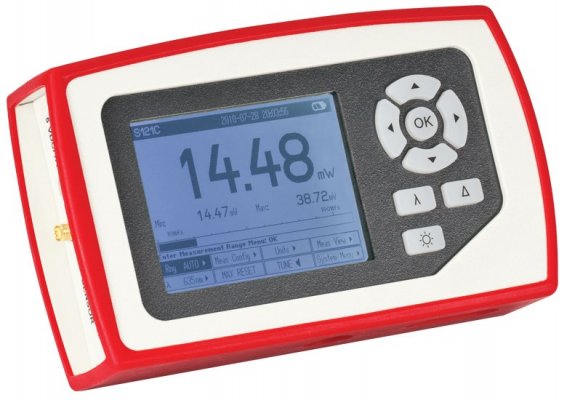

緊湊型光功率和能量計表頭，數字4英寸液晶顯示器

用于C-系列傳感器的USB功率和能量計接口

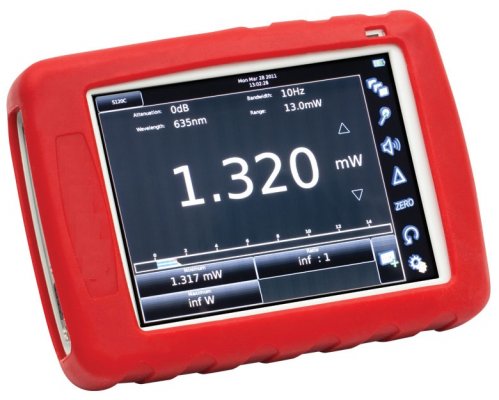

觸摸屏功率計和能量計表頭, 5.7" 彩色 LCD

光功率能量計表頭，投射電容式觸摸屏

雙通道臺式功率和能量計控制臺

價格

￥11,108.10

￥12,243.00

￥7,666.78

￥17,274.00

￥11,571.30

￥25,571.00

Description

Analog Power Meter Console

Digital Power and Energy Meter Console

USB Power and Energy Meter Interface

Touchscreen Power and Energy Meter Console

Touchscreen Power and Energy Meter Console with Multi-Touch

Dual-Channel Benchtop Power and Energy Meter Console

Compatible Sensors

Photodiode and Thermal

Photodiode, Thermal, and Pyroelectric

Housing Dimensions
(H x W x D)

7.24" x 4.29" x 1.61"
(184 mm x 109 mm x 41 mm)

7.09" x 4.13" x 1.50"
(180 mm x 105 mm x 38 mm)

3.67" x 2.38 " x 1.13"
(93.1 mm x 60.4 mm x 28.7 mm)

6.70" x 4.93" x 1.48"
(170.2 mm x 125.1 mm x 37.5 mm)

5.35" x 3.78" x 1.16"
(136.0 mm x 96.0 mm x 29.5 mm)

4.8" x 8.7" x 12.8"
(122 mm x 220 mm x 325 mm)

Channels

1

2

External Temperature Sensor Input
(Sensor not Included)

-

-

-

-

Instantaneous Readout and Record Temperature Over Time

-

External Humidity Sensor Input (Sensor not Included)

-

-

-

-

Instantaneous Readout and  Record Humidity Over Time

-

GPIO Ports

-

4, Programmable

4, Programmable

-

Source Spectral Correction

-

-

-

-

Attenuation Correction

-

-

-

-

External Trigger Input

-

-

-

Display

Type

Mechanical Needle and LCD Display with Digital Readout

320 x 240 Pixel Backlit Graphical LCD Display

No Built-In Display
Controlled via GUI for PC

Resistive Touchscreen with Color Display

Protected Capacitive Touchscreen with Color Display

240 x 128 Pixels
Graphical LCD Display

Dimensions

Digital: 1.9" x 0.5"
(48.2 mm x 13.2 mm)
Analog: 3.54" x 1.65"
(90.0 mm x 42.0 mm)

3.17" x 2.36"
(81.4 mm x 61.0 mm)

-

4.65" x 3.48"
(118.0 mm x 88.5 mm)

3.7" x 2.1"
(95 mm x 54 mm)

3.7" x 2.4"
(94.0 mm x 61.0 mm)

Refresh Rate

20 Hz

Up to 500 Hz
(PC Dependent)

100 Hz

10 Hz (Numerical)
25 Hz (Analog Simulation)

20 Hz

Measurement Viewsa

Numerical

Requires PCb

Mechanical Analog Needle

-

-

-

-

-

Simulated Analog Needle

-

Requires PCb

Bar Graph

-

Requires PCb

Trend Graph

-

Requires PCb

Histogram

-

Requires PCb

-

-

Statistics

Requires PCb

Memory

Type

-

SD Card

-

NAND Flash

NAND Flash

-

Size

-

2 GB

-

128 MB

4 GB

-

Power

Battery

LiPo 3.7 V 1300 mAh

-

LiPo 3.7 V 2600 mAh

LiPo 3.7 V 2600 mAh

-

External

5 VDC via USB or Included AC Adapter

5 VDC via USB

5 VDC via Included Power Supply

5 VDC via USB

Selectable Line Voltage: 100 V, 115 V, 230 V (±10%)
